BENGKEL STP OTOMOTIF

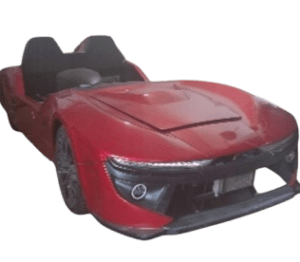

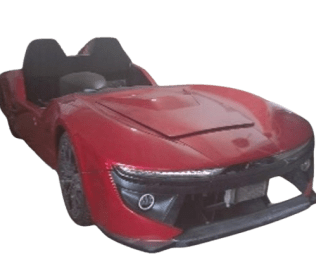

Series PHEV Roadster ITS

Desain

Prototype

Overview
Manufacturer PUI-STP OTOMOTIF ITS
Production 2020
Price -
Body and Chassis
Class Series Hybrid EV
Body style Roadster
Layout Mid Drive, Rear Wheel Drive
Frame Type Tubular Space Frame
ICE Specification
Manufacturer Honda, CBR 150R
Displacement 4 Stroke, 149 cc
Max Power 12,4 kW
Max Torque 13,8 Nm
Cooling Water Cooled
Battery and Charging
Battery Capacity 4,8 kWh, LiFeP04 Cell 3,2V 50Ah
Charge Port XT90
Port Location Trunk
Voltage 48V
Charging Time -
Dimensions and Weight
Length 3455 mm
Width 1500 mm
Height 1095 mm
Wheelbase 2775 mm
Weight 615 Kg
Performance
Top Speed -
Electric Range -
Power 10 kW Rated
Torque 29 Nm Rated
Drivetrain Single Speed, Direct Transmission Electric Reverse
Other
Rim "17"" Alloy rim F/R"
Front Tire 215/45 ZR17
Rear Tire 215/45 ZR18
Front Suspension Coil Spring
Rear Suspension Coil Spring
Front Brake Disk Brake
Rear Brake Disk Brake
