Halaman Product of Electric Vehicle Custom Production and Test-Conversion Workshop

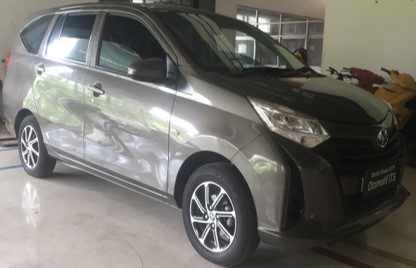

Toyota Calya Conversion
| Overview | |
|---|---|
| Manufacturer | Toyota, Converted by STP OTOMOTIF ITS |
| Production | 2020 |
| Price | - |
| Body and Chassis | |
| Class | Conversion Electric Car |
| Body style | MPV |
| Layout | Mid Drive, Front Wheel Drive |
| Frame Type | Monocoque |
| Battery and Charging | |
| Battery Capacity | 30 kWh, Li-Ion Cell NCA |
| Charge Port | J1772 Type 1 |
| Port Location | Fuel Cap, Driver Side |
| Voltage | 400 V |
| Charging Time | 3-4 Hours |
| Dimensions and Weight | |
|---|---|
| Length | 4070 mm |
| Width | 1655 mm |
| Height | 1600 mm |
| Wheelbase | 2525 mm |
| Performance | |
| Top Speed | |
| Electric Range | Up to 100 Km |
| Power | 30 kW Rated |
| Torque | 200 Nm |
| Drive train | Manual Transmission, 5 Speed+R |
| Other | |
| Rim | 14" Alloy rim F/R |
| Front Tire | 175/65 R14 |
| Rear Tire | 175/65 R14 |
| Front Suspension | MacPherson Strut, Independent Suspension system |
| Rear Suspension | Coil Spring with Torsion beam |
| Front Brake | Ventilated hidrolic disc brake |
| Rear Brake | Drum brake |
